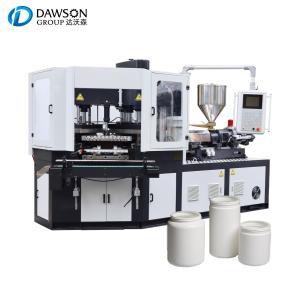

Professional manufacture quality popular product 250ml 500m for plastic Jar bottle injection blowing molding machine
A blow molding machine is a device specifically designed for manufacturing plastic containers. It uses injection and blow molding processes to inject molten plastic material into the mold, and then through air pressure blow molding, it contacts the inner wall of the mold and forms the desired container shape.
Excellent quality and safety
We always hold strict standards for quality and safety. Our injection blown machine uses durable materials that can withstand long-term operation and ensure that the produced wide mouth cans meet industry standards and regulatory requirements. You can use our products with confidence and provide reliable packaging solutions for your cosmetics.
Personalized services and support
We not only provide excellent blow molding machines, but also are committed to providing you with comprehensive personalized services and support. Whether it's technical consulting, equipment maintenance, or spare parts supply, our professional team will always maintain close contact with you to ensure the smooth operation of your production line.
DAWSON MACHINERY & MOULD GROUP
.jfif)
Technical Parameters
| | | | |
| Item | | Unit | |
| Injection system | Screw Diameter | mm | 40 | 45 | 50 |
| Max. Theoretical injection capacity | G | 176 | 260 | 314 |
| Heating capacity | KW | 7.2 | 10 | 10 |
| No. of heating area | Qty | 3 | 3 | 3 |
| Clamping & blowing system | Clamping force of injection | kn | 350 | 450 | 650 |
| Clamping force of blowing | kn | 40 | 78 | 89 |
| Opening stroke of mold platen | mm | 120 | 120 | 140 |
| Max. Platen size (L×W) | mm | 420×340 | 560×390 | 740×390 |
| Min. Mold thickness (H) | mm | 180 | 240 | 280 |
| Heating capacity of mould | KW | 2.8 | 4.0 | 5.0 |
| Product dimension range | Suitable bottle range | ml | 3-800 | 3-800 | 5-800 |
| Max. bottle height | mm | ≤180 | ≤200 | ≤200 |
| Max. Dia. of bottle | mm | ≤80 | ≤80 | ≤80 |
| Dry cycle | s | 4 | | |
| Hydraulic driving system | Motor power | KW | 11/15 | 18.7/22 | 17 |
| hydraulic pressure | Mpa | 14 | 14 | 14 |
| Pneumatic system | Min. Air pressure | Mpa | ≥0.8 | 1.0 | 1.0 |
| Discharge rate of compressed air | M3/mm | ≥0.7 | ≥0.8 | ≥0.8 |
| Cooling system | Water flowage | M3/h | 3 | 3 | 4 |
| | Total rated power with mold heating | KW | 21/25 | 34/38 | 45 |
| Machine information | Dimension | M | 3.1×1.2×2.2 | 3.5×1.4×2.3 | 4×1.28×2.35 |
| machine weight | Ton | 4.0 | 6.0 | 7.5 |
Machine Advantages
our bottle materials have changed from single glass or ceramics to various kinds of plastics. Drawing lessons from the long history of glass container blowing process, the extrusion or injection molding plastic mold in relativistic state is placed in the blowing mold, and the mold is inflated by a certain pressure of compressed air to make it close to the cavity wall. After cooling and setting, the mold is demolished to obtain the plastic hollow products with the same shape as the cavity. This is the hollow blow molding process we are familiar with.
our own engineers team, we have more then 18 years experience in this field.
1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.
2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the
others.
Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.
Injection blow plastic bottles are molded from raw materials to finished products in one step, with a high degree of automation, no need of manual secondary processing, labor saving, hygienic and in line with the GMP requirements of pharmaceutical packaging. It is especially suitable for the production of pharmaceutical bottles, juice, beverage, milk bottles and cosmetic bottles and other industries with higher bottle requirements.
Professional Workshop
Our Professional Injection Blow Molding Machine Workshop...
Company Profile
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine,injection blow molding machine, injection molding machine, PET blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

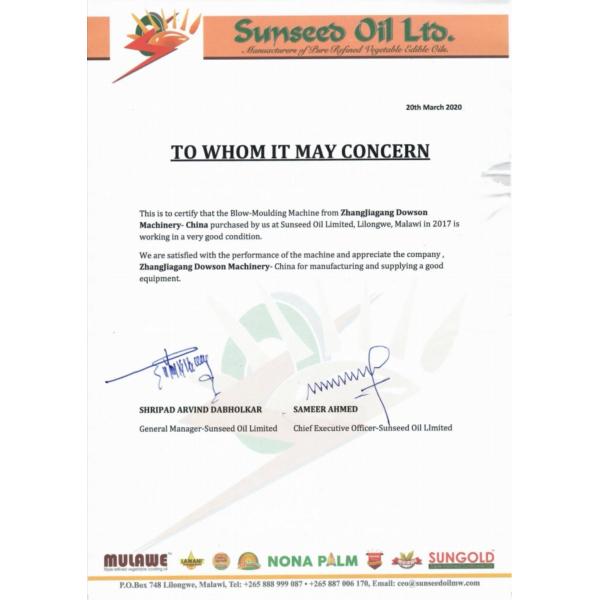

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
| |
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
|
